產品概述
LN8120 is a wide inputrange, high-efficiency and high frequency DC-to DC step-down switching regulator,capable of delivering up to 2A of output current. With a fixed switchingfrequency of 500KHz, this current mode PWM controlled converter allows the useof small external components, such as ceramic input and output caps, as well assmall inductors. LN8120 also employs a proprietary control scheme that switchesthe device into a power save mode during light load, thereby extending therange of high efficiency operation. An OVP function protects the IC itself andits downstream system against input voltage surges. With this OVP function, theIC can stand off input voltage as high as 19V, making it an ideal solution forindustrial applications such as LCD TV, Set Top Box, Portable TV, etc.
產品特點
Wide Input Range: 4.2V-18V
High Efficiency PFM mode at light load
Capable of Delivering 2A
No External Compensation Needed
Current Mode Control
Thermal Shutdown and UVLO
Excellent Load and Line Transient Response
典型應用電路

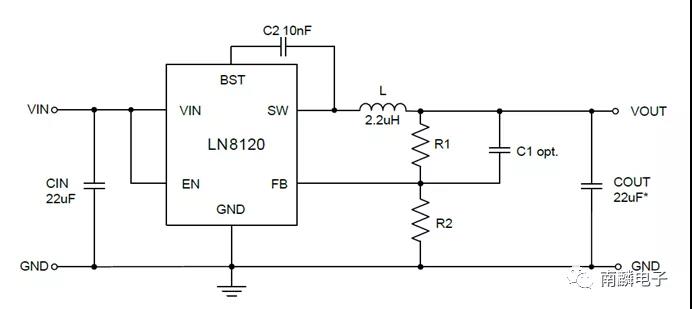

產品概述
LN8322是一款可驅動高端和低端N溝道MOSFET柵極驅動芯片，用于同步降壓、升降壓和半橋拓?fù)渲?。高邊?cè)懸浮電壓的工作電壓可以高達30V。
LN8322內部集成欠壓鎖死電路可以確保MOSFET在較低的電源電壓下處于關斷狀態，以提高轉換效率。集成使能關斷功能，可以同時關斷HO、LO的輸出。
LN8322內置死區自適應功能，可以適應更多規格MOSFET，同時簡化設計的繁瑣。
LN8322采用ESOP-8、MSOP-8、DFN3*3-8等多種封裝形式，給方案設計帶來更多的選擇。
應用領域
半橋/全橋轉換器
同步降壓、升降壓拓?fù)?/p>

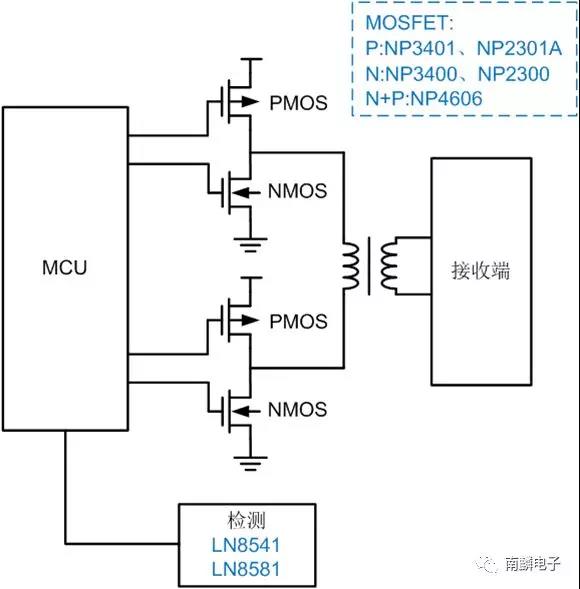

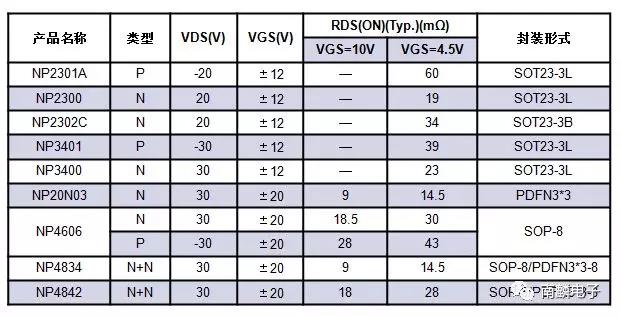

電子煙、無線充MOSFET驅動器
產品特點
電源電壓工作范圍為4.5V~13.2V
內置自舉二極管
輸出電流：+2A/-2A
兼容3.3V和5.5V PWM輸入
UVLO時EN端輸出低電平
內建死區自適應功能來防止FET交叉導通
EN端可同時關斷上下兩個MOSFET
VCC欠壓鎖死功能
采用SOP-8/ESOP-8、DFN3*3和MSOP8封裝
綠色環保無鹵，滿足ROHS標準
封裝
ESOP-8
DFN3*3
MSOP-8

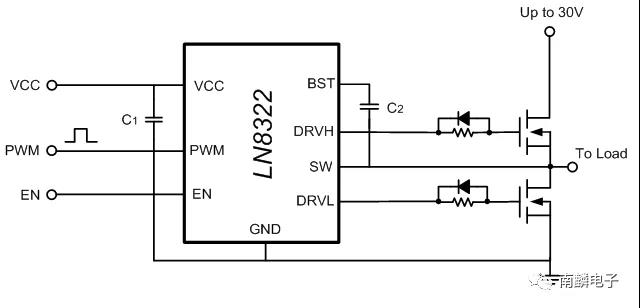

典型應用電路
